B82791H0015A025 | TDK (EPCOS)

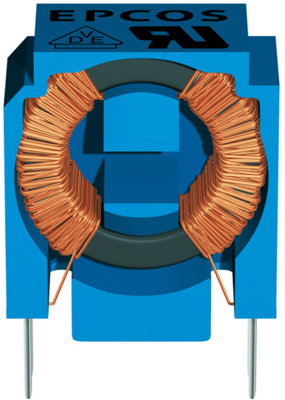

Data line choke, radial, 10 µH, 100 mA, B82791H0015A025
Unit Price (€ / pc.)
2.7727 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
1,663.62 € *
Price list
Quantity
Price per unit*
600 pcs.
2.7727 €
4000 pcs.
2.5585 €
*incl. VAT plus shipping costs
**Subject to prior sale
Double chokes, type B82791
suitable for data and signal lines.
Design: current-compensated ring core double choke
Rated voltage: 80 VDC/42 VAC
Rated current: 0.1 A
IEC climate category: 40/125/56

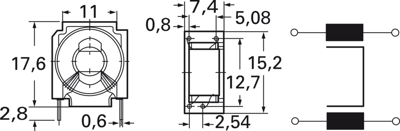

Grid: 2.54 + 5.08/12.7 mm
Technical specifications
| DC current | 100 mA | |
| Saturation current | 100 mA | |
| Width | 7.4 mm | |
| Height | 17.6 mm | |
| Length | 15.2 mm | |
| DC resistance | 1.2 Ω | |
| Measuring frequency | 10 kHz | |
| Version | power line choke | |
| Design | radial | |
| Tolerance | -30/+50 % | |
| Inductance | 10 µH |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| Original Packaging | Tray with 200 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
| RoHS conform | Yes |
