B82726S2163N002 | TDK (EPCOS)

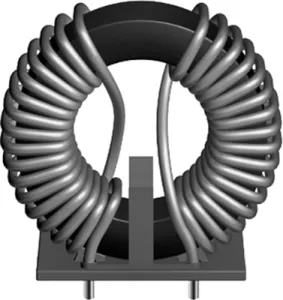

Power line choke, radial, 1.4 mH, 16 A, B82726S2163N002
Unit Price (€ / pc.)
10.1864 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,589.08 € *
Price list
Quantity
Price per unit*
156 pcs.
10.1864 €
780 pcs.
9.5795 €
*incl. VAT plus shipping costs
Subject to prior sale
Power line chokes, type TDK/Epcos B82726S.
Current-compensated ring core double choke for line applications. ferrite core, choke snap-fitted to the polycarbonate (UL 94 V-0) base plate
Technical specifications
| DC current | 16 A | |
| Saturation current | 16 A | |
| Width | 23.3 mm | |
| Height | 49 mm | |
| Length | 50 mm | |
| DC resistance | 7.1 mΩ | |
| Measuring frequency | 10 kHz | |
| Version | power line choke | |
| Design | radial | |
| Tolerance | ±30 % | |
| Inductance | 1.4 mH |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85045000 |
| Original Packaging | Carton with 156 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
| RoHS conform | Yes |
