B82722J2202N001 | TDK (EPCOS)

Power line choke, radial, 2.2 mH, 2 A, B82722J2202N001

Order No.: 75D516
EAN: 4099889039771
MPN:
B82722J2202N001
B82722J2202N1
Series: B82722J
B82722J2202N001 TDK (EPCOS) Fixed Inductors Image 1
B82722J2202N001 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
3.0226 € *
Available: 182 pcs.
Total Price:
3.02 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0226 €
10 pcs.
2.6775 €
100 pcs.
2.4157 €
250 pcs.
2.2015 €
1000 pcs.
2.0111 €
*incl. VAT plus shipping costs
Subject to prior sale

Power line chokes, type TDK/Epcos B82721A./B82721K.

Current-compensated ring core double choke for line applications. Ferrite core, polyurethane potting, flame retardant cup and mold (UL 94 V-0), connecting pins according to grid

Design A horizontal, J vertical, type B82722A./B82722J.

Technical specifications
Filter Property Value
Inductance 2.2 mH
DC current 2 A
DC resistance 130 mΩ
Design radial
Version power line choke

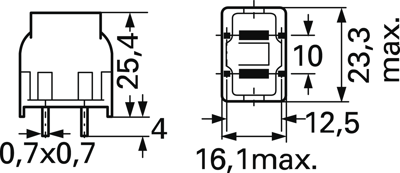

Width 16.1 mm
Height 25.4 mm
Saturation current 2 A
Tolerance ±30 %
Measuring frequency 10 kHz
Length 23.3 mm
Logistics
Property Value
Country of origin HU
Original Packaging Carton with 540 pieces
Customs tariff number 85045000
Compliance
Property Value
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
