B82722J2102N001 | TDK (EPCOS)

Power line choke, radial, 10 mH, 1 A, B82722J2102N001

Order No.: 75D514
EAN: 4099889039764
MPN:
B82722J2102N001
B82722J2102N1
Series: B82722J

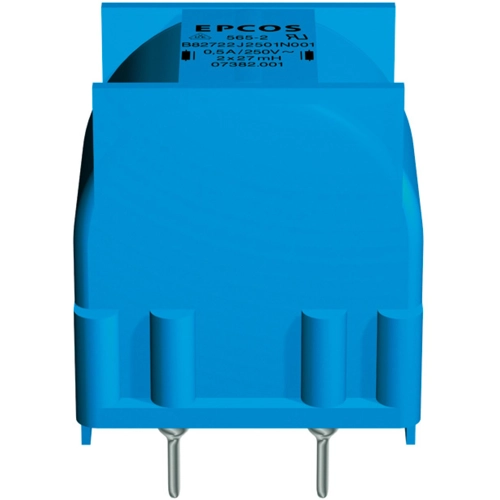

B82722J2102N001 TDK (EPCOS) Fixed Inductors Image 1
B82722J2102N001 TDK (EPCOS) Fixed Inductors Image 2
Image may differ
Unit Price (€ / pc.)
2.2253 € *
Available: 1,019 pcs.
Total Price:
2.23 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2253 €
10 pcs.
1.9040 €
100 pcs.
1.5708 €
250 pcs.
1.4399 €
500 pcs.
1.4042 €
*incl. VAT plus shipping costs
Subject to prior sale

Power line choke, type TDK/Epcos B82721A./B82721K.

Current-compensated ring core double choke for line applications. Ferrite core, polyurethane potting, flame retardant cup and mold (UL 94 V-0), connecting pins according to grid

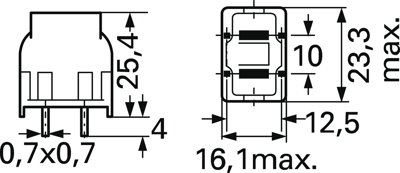

Design A horizontal, J vertical, type B82722A./B82722J.

Technical specifications
Filter Property Value
Height 25.4 mm
Design radial
Inductance 10 mH
Tolerance ±30 %
Length 23.3 mm
Width 16.1 mm
Saturation current 1 A
Measuring frequency 10 kHz
Version power line choke
DC resistance 480 mΩ
DC current 1 A
Logistics
Property Value
Original Packaging Carton with 540 pieces
Customs tariff number 85045000
Country of origin HU
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
