B67345B0002X027 | TDK (EPCOS)

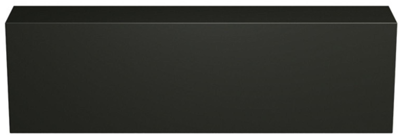

I core, N27, 7400 nH, -20/+30 %, (L x W x H) 93 x 30 x 76 mm, B67345B0002X027
Unit Price (€ / pc.)
16.0769 € *
Available: 14 pcs.
Leadtime: On Request **
Total Price:
16.08 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0769 €
8 pcs.
14.5418 €
16 pcs.
14.1491 €
64 pcs.
13.3756 €
152 pcs.
12.9115 €
*incl. VAT plus shipping costs
**Subject to prior sale
I cores I93/28/30, type B67345.
Effective magnetic field parameters: path length/cross-sectional area/effective magnetic volume: 258 mm/840 mm²/216000 mm³. AL reference value: 7400 nH. Note: Magnetic field parameters and AL values apply to core kits consisting of one U core and one I core without air gap. Supplied as per single item.
Technical attributes (type, AL value, material): B67345B2X27, 7400 nH, N27
Technical specifications
| Width | 30 mm | |
| Height | 76 mm | |
| Length | 93 mm | |
| Material | N27 | |
| Air gap | no air gap | |
| Tolerance | -20/+30 % | |
| AL value | 7400 nH | |
| Core shape | I |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 8 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
