B67345B0001X027 | TDK (EPCOS)
U core, N27, 5400 nH, -20/+30 %, (L x W x H) 93 x 76 x 20 mm, B67345B0001X027
Unit Price (€ / pc.)
22.1816 € *
Available: 32 pcs.
Leadtime: 3 Weeks **
Total Price:
354.91 € *
Price list
Quantity
Price per unit*
16 pcs.
22.1816 €
80 pcs.
17.6358 €
*incl. VAT plus shipping costs
**Subject to prior sale

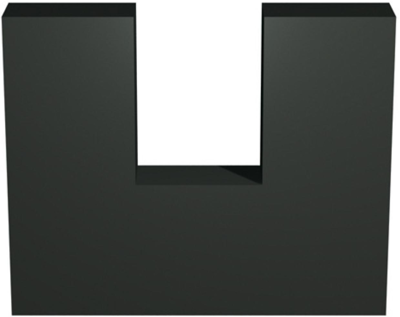

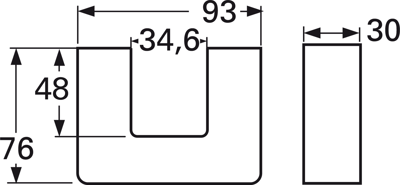

U cores U93/76/30, type TDK/Epcos B67345.
Rectangular cross-section, e. g. for power transformer assemblies; Magnetic field parameters: path length/cross-sectional area/magnetic volume: 354 mm/840 mm²/297000 mm³. Magnetic field parameters and AL values apply to core kits (2 x U) consisting of two cores without air gap. Supplied as per single item.
Technical attributes (type, AL value, material): B67345B1X27, 5400 nH, N27
Technical specifications
| Width | 76 mm | |
| Height | 20 mm | |
| Length | 93 mm | |
| Material | N27 | |
| Air gap | no air gap | |
| Tolerance | -20/+30 % | |
| AL value | 5400 nH | |
| Core shape | U |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 8 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
