B66363G1000X127 | TDK (EPCOS)
ETD core, N27, 196 nH, (L x W x H) 38.9 x 12.8 x 20 mm, B66363G1000X127
Unit Price (€ / pc.)
3.1416 € *
Available: 219 pcs.
Leadtime: On Request **
Total Price:
3.14 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1416 €
10 pcs.
2.7608 €
200 pcs.
2.4276 €
400 pcs.
2.3324 €
800 pcs.
2.2372 €
*incl. VAT plus shipping costs
**Subject to prior sale

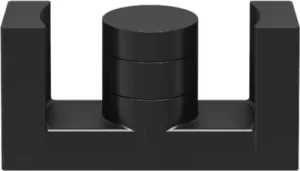

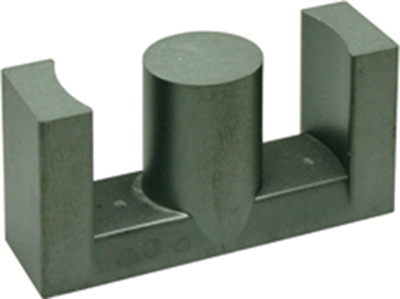

E cores ETD39, type TDK/Epcos B66363.
To IEC 61185. With optimized weight/volume/power ratio. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g). Both cores will produce the specified AL reference value; Basic dimensions of a finished transformer/transponder: L 48, W 45, H 38 mm.
Technical attributes (type, dimension g, AL value, material type): B66363G1000X127, 1.0 mm, 196 nH, N27
Technical specifications
| Width | 12.8 mm | |
| Height | 20 mm | |
| Length | 38.9 mm | |
| Material | N27 | |
| Air gap | 1 mm | |
| AL value | 196 nH | |
| Core shape | ETD |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 200 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
