B66325G0250X127 | TDK (EPCOS)

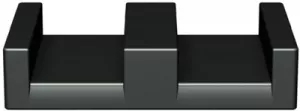

E core, N27, 759 nH, (L x W x H) 42 x 21.2 x 15.2 mm, B66325G0250X127
Unit Price (€ / pc.)
3.7842 € *
Available: 800 pcs.
Leadtime: On Request **
Total Price:
3.78 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7842 €
10 pcs.
3.3320 €
208 pcs.
2.9155 €
416 pcs.
2.8084 €
832 pcs.
2.6894 €
*incl. VAT plus shipping costs
**Subject to prior sale

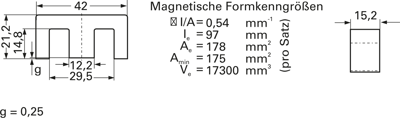

E cores E42/21/15, type TDK/Epcos B66325.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66325G250X127, 0.25 mm, 759 nH, N27
Technical specifications
| Width | 21.2 mm | |
| Height | 15.2 mm | |
| Length | 42 mm | |
| Material | N27 | |
| Air gap | 0.25 mm | |
| AL value | 759 nH | |
| Core shape | E |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 208 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
