B66325G0000X187 | TDK (EPCOS)
E core, N87, 3950 nH, -20/+30 %, (L x W x H) 42 x 15.2 x 21.2 mm, B66325G0000X187
Unit Price (€ / pc.)
2.0468 € *
Available: 0 pcs.
Leadtime: On Request **

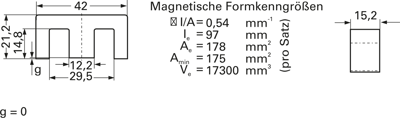

E cores E42/21/15, type TDK/Epcos B66325.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66325GX187, 0 mm, 3950 nH, N87
Technical specifications
| Width | 15.2 mm | |
| Height | 21.2 mm | |
| Length | 42 mm | |
| Material | N87 | |
| Air gap | no air gap | |
| Tolerance | -20/+30 % | |
| AL value | 3950 nH | |
| Core shape | E |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 208 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
