B66319G0340X127 | TDK (EPCOS)
E core, N27, 195 nH, (L x W x H) 30 x 15.2 x 7.3 mm, B66319G0340X127
Unit Price (€ / pc.)
2.3562 € *
Available: 112 pcs.
Leadtime: On Request **
Total Price:
2.36 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3562 €
10 pcs.
1.4756 €
50 pcs.
1.2971 €
250 pcs.
1.1186 €
850 pcs.
0.9996 €
*incl. VAT plus shipping costs
**Subject to prior sale

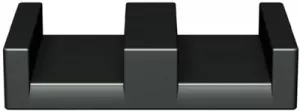

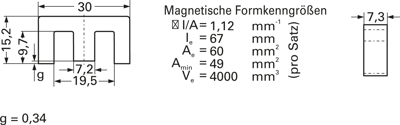

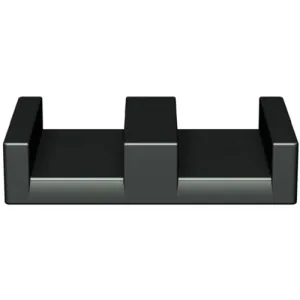

E cores E30/15/7, type TDK/Epcos B66319.
Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66319G340X127, 0.34 mm, 195 nH, N27
Technical specifications
| Width | 15.2 mm | |
| Height | 7.3 mm | |
| Length | 30 mm | |
| Material | N27 | |
| Air gap | 0.34 mm | |
| AL value | 195 nH | |
| Core shape | E |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85049011 |
| Original Packaging | Carton with 850 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
