B66311G0170X127 | TDK (EPCOS)
E core, N27, 227 nH, ±0.25 %, (L x W x H) 20.4 x 10.1 x 4.9 mm, B66311G0170X127
Unit Price (€ / pc.)
0.9163 € *
Available: 453 pcs.
Leadtime: On Request **
Total Price:
9.16 € *
Price list
Quantity
Price per unit*
10 pcs.
0.9163 €
50 pcs.
0.7973 €
250 pcs.
0.7021 €
*incl. VAT plus shipping costs
**Subject to prior sale

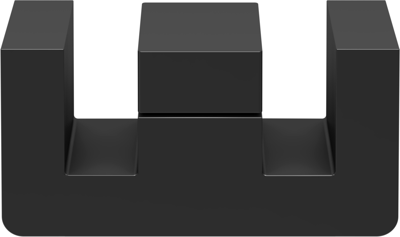

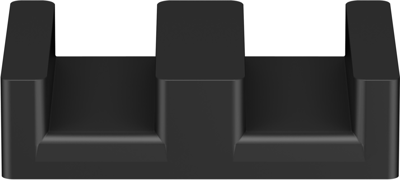

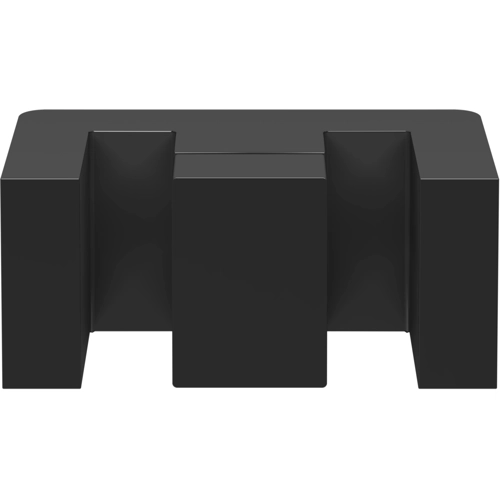

E cores E20/10/6 or EF20, type TDK/Epcos B66311.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.

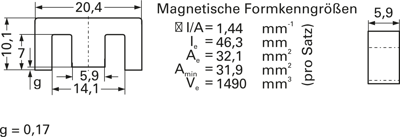

Technical attributes (type, dimension g, AL value, material type): B66311G170X127, 0.17 mm, 227 nH, N27
Technical specifications
| Width | 10.1 mm | |
| Height | 4.9 mm | |
| Length | 20.4 mm | |
| Material | N27 | |
| Air gap | 0.17 mm | |
| Tolerance | ±0.25 % | |
| AL value | 227 nH | |
| Core shape | E |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 1,470 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
