B66311G0090X127 | TDK (EPCOS)

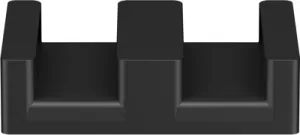

E core, N27, 363 nH, (L x W x H) 20.4 x 10.1 x 4.9 mm, B66311G0090X127
Unit Price (€ / pc.)
1.4994 € *
Available: 0 pcs.
Next delivery: 5,880 pcs. on 2025-05-28
Leadtime: On Request **
Total Price:
1.50 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4994 €
10 pcs.
0.9401 €
50 pcs.
0.8211 €
250 pcs.
0.7140 €
*incl. VAT plus shipping costs
**Subject to prior sale
E cores E20/10/6 or EF20, type TDK/Epcos B66311.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66311G90X127, 0.09 mm, 363 nH, N27
Technical specifications
| Width | 10.1 mm | |
| Height | 4.9 mm | |
| Length | 20.4 mm | |
| Material | N27 | |
| Air gap | 0.09 mm | |
| AL value | 363 nH | |
| Core shape | E |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85049011 |
| Original Packaging | Tray with 1,470 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
