B66307G0000X187 | TDK (EPCOS)
E core, N87, 1000 nH, -20/+30 %, (L x W x H) 16 x 4.7 x 8.2 mm, B66307G0000X187
Unit Price (€ / pc.)
0.6902 € *
Available: 174 pcs.
Leadtime: On Request **
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6902 €
25 pcs.
0.5474 €
100 pcs.
0.4641 €
250 pcs.
0.4046 €
1000 pcs.
0.3570 €
*incl. VAT plus shipping costs
**Subject to prior sale

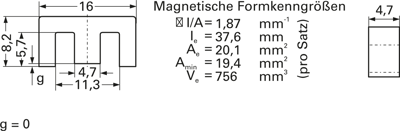

E cores E16/8/5 or EF16, type TDK/Epcos B66307.
To IEC 61246. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. The corresponding core without air gap (dimension g = 0) must be ordered along with the gapped core (dimension g) to obtain the specified AL value.
Technical attributes (type, dimension g, AL value, material type): B66307GX187, 0 mm, 1000 nH, N87
Technical specifications
| Width | 4.7 mm | |
| Height | 8.2 mm | |
| Length | 16 mm | |
| Material | N87 | |
| Air gap | no air gap | |
| Tolerance | -20/+30 % | |
| AL value | 1000 nH | |
| Core shape | E |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 2,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
