B65815E1000J041 | TDK (EPCOS)
RM core, N41, 1000 nH, ±5 %, outer Ø 25 mm, inner Ø 12.8 mm, (L x W x H) 37.6 x 24.6 x 12.3 mm, B65815E1000J041
Unit Price (€ / pc.)
4.6172 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,385.16 € *
Price list
Quantity
Price per unit*
300 pcs.
4.6172 €
1500 pcs.
4.3435 €
*incl. VAT plus shipping costs
**Subject to prior sale

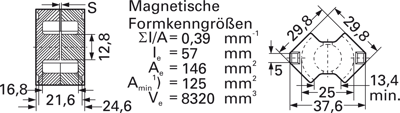

Core kits, RM12, type TDK/Epcos B65815.
To IEC 62317-4. Preferably for power applications. Made of silicon ferrite materials; refer to the corresponding data table at the end of the cores section. without center hole, gapped.
Technical attributes (type, AL value, material): B65815E1000J41, 1000 nH, N41
Technical specifications
| Core shape | RM | |
| Air gap | 0.12 mm | |
| Material | N41 | |
| AL value | 1000 nH | |
| Tolerance | ±5 % | |
| Outer diameter | 25 mm | |
| Inner diameter | 12.8 mm | |
| Length | 37.6 mm | |
| Width | 24.6 mm | |
| Height | 12.3 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 100 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
