B65686A0000R027 | TDK (EPCOS)

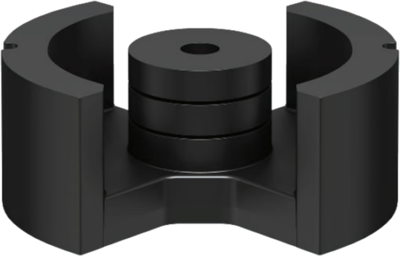

PM core, N27, 10000 nH, -20/+30 %, outer Ø 74 mm, inner Ø 29.5 mm, (H) 59 mm, B65686A0000R027
Unit Price (€ / pc.)
47.1478 € *
Available: 42 pcs.
Leadtime: 1 Week **
Total Price:
47.15 € *
Price list
Quantity
Price per unit*
1 pcs.
47.1478 €
10 pcs.
41.4953 €
20 pcs.
40.3529 €
40 pcs.
39.2224 €
*incl. VAT plus shipping costs
**Subject to prior sale
Core kits PM74/59, type TDK/Epcos B65686.
Compliant with IEC 61247, for power transformers and smoothing chokes in clocked high-power power supplies, made of silicon ferrite materials (data listed in table at the end of the section on cores); Basic dimensions of a finished transformer/transponder: L 85.5, W 75, H 65 mm.
Technical attributes (type, AL value, material type, design): B65686AR27, 10000 nH, N27, not gapped
Technical specifications
| Outer diameter | 74 mm | |
| Height | 59 mm | |
| Material | N27 | |
| Air gap | no air gap | |
| Tolerance | -20/+30 % | |
| AL value | 10000 nH | |
| Core shape | PM | |
| Inner diameter | 29.5 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
