B65523J0000R087 | TDK (EPCOS)

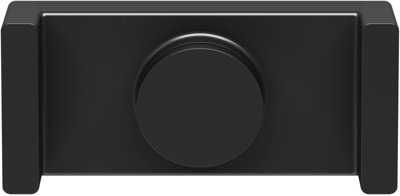

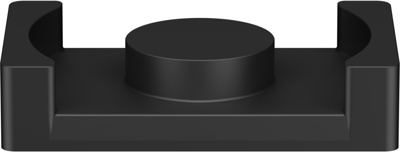

ER core, N87, 800 nH, -20/+30 %, outer Ø 7.5 mm, inner Ø 3.5 mm, (L x W x H) 9.5 x 5 x 5 mm, B65523J0000R087
Unit Price (€ / pc.)
1.1662 € *
Available: 950 pcs.
Leadtime: On Request **
Total Price:
11.66 € *
Price list
Quantity
Price per unit*
10 pcs.
1.1662 €
50 pcs.
1.0353 €
250 pcs.
0.8925 €
2000 pcs.
0.7021 €
4000 pcs.
0.6545 €
*incl. VAT plus shipping costs
**Subject to prior sale
Core kits ER9.5, type TDK/Epcos B65523.
To IEC 62317-9. Made of silicon ferrite material; refer to the corresponding data table at the end of the cores section. Without air gap; Mounting dimensions of the complete kit: L 11.9, W 9.9, H 5.7 mm.
Technical attributes (type, AL value, material): B65523JR87, 800 nH, N87
Technical specifications
| Core shape | ER | |
| Air gap | no air gap | |
| Material | N87 | |
| AL value | 800 nH | |
| Tolerance | -20/+30 % | |
| Outer diameter | 7.5 mm | |
| Inner diameter | 3.5 mm | |
| Length | 9.5 mm | |
| Width | 5 mm | |
| Height | 5 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 2,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
