B64290P0037X038 | TDK (EPCOS)

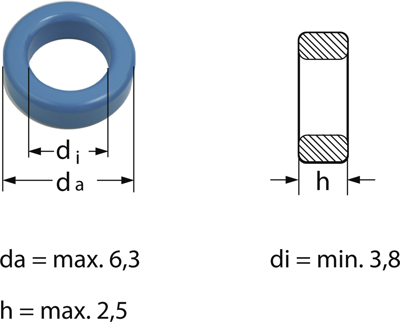

Toroidal core, T38, 2530 nH, ±30 %, outer Ø 6.3 mm, inner Ø 3.8 mm, (H) 2.5 mm, B64290P0037X038
Unit Price (€ / pc.)
0.7616 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7616 €
25 pcs.
0.6664 €
150 pcs.
0.5831 €
500 pcs.
0.5355 €
1000 pcs.
0.4879 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cores, type TDK/Epcos B64290.
With epoxy resin coating (type R6.3 with 0.01 mm Parylene coating). The cores are made of silicon ferrite materials and correspond to the properties and dimensions specified in the table above. For additional material properties, refer to the table at the end of the cores section.
Made of T38, type B64290.
Permeability in new state: 10,000. AL value tolerance: ±30 %.
Technical attributes (type, core type according to data table (R), AL value (nH)): B64290P37X38, R 6.3, 2530 nH
Technical specifications
| Outer diameter | 6.3 mm | |
| Height | 2.5 mm | |
| Material | T38 | |
| Air gap | no air gap | |
| Tolerance | ±30 % | |
| AL value | 2530 nH | |
| Core shape | ring | |
| Inner diameter | 3.8 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Bulk with 4,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
