B64290L0045X027 | TDK (EPCOS)

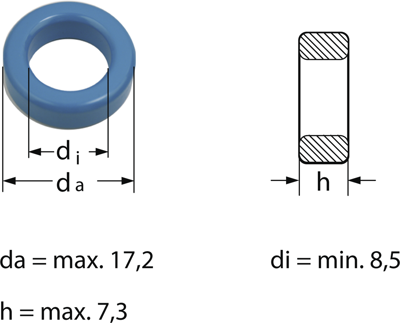

Toroidal core, N27, 1290 nH, ±25 %, outer Ø 16 mm, inner Ø 9.6 mm, (H) 6.3 mm, B64290L0045X027
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: On Request **
Ring cores, type TDK/Epcos B64290.
With epoxy resin coating (type R6.3 with 0.01 mm Parylene coating). The cores are made of silicon ferrite materials and correspond to the properties and dimensions specified in the table above. For additional material properties, refer to the table at the end of the cores section.
Made of N27, type B64290.
Permeability in new state: 2000.
Technical attributes (type, core type according to data table (R), AL value (nH)): B64290L45X27, R 16, 1290 nH
Technical specifications
| Outer diameter | 16 mm | |
| Height | 6.3 mm | |
| Material | N27 | |
| Air gap | no air gap | |
| Tolerance | ±25 % | |
| AL value | 1290 nH | |
| Core shape | ring | |
| Inner diameter | 9.6 mm |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85049011 |
| Original Packaging | Carton with 2,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
