B41231B6109M000 | TDK (EPCOS)
Electrolytic capacitor, 10000 µF, 50 V (DC), ±20 %, radial, pitch 10 mm, Ø 35 mm, B41231B6109M000
Not suitable for new designs
Unit Price (€ / pc.)
5.1289 € *
Available: 0 pcs.
Next delivery: 240 pcs. on 2025-07-16
Leadtime: 17 Weeks **
Total Price:
5.13 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1289 €
10 pcs.
4.7481 €
50 pcs.
4.4744 €
100 pcs.
4.2245 €
250 pcs.
4.0222 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor in aluminum can, type TDK/Epcos B41231.
Insulated can with snap-in connection, high AC current compatibility, to IEC 60384-4
Rated voltage 50 VDC.

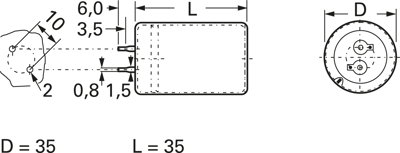

Technical specifications
| Rated voltage (DC) | 50 V | |
| Capacity | 10000 µF | |
| diameter | 35 mm | |
| Grid | 10 mm | |
| Length | 35 mm | |
| Version | polar | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Connection | snap-in | |
| Tolerance | ±20 % | |
| max. operating temperature | 85 °C | |
| Ripple current | 5.97 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 60 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
