B41231A9478M000 | TDK (EPCOS)

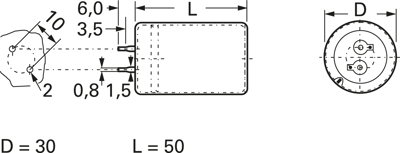

Electrolytic capacitor, 4700 µF, 100 V (DC), ±20 %, radial, pitch 10 mm, Ø 30 mm, B41231A9478M000
Not suitable for new designs
Unit Price (€ / pc.)
8.2943 € *
Available: 152 pcs.
Leadtime: On Request **
Total Price:
8.29 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2943 €
10 pcs.
5.9143 €
25 pcs.
5.0575 €
50 pcs.
4.3911 €
100 pcs.
3.9984 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor in aluminum can, type TDK/Epcos B41231.
Insulated can with snap-in connection, high AC current compatibility, to IEC 60384-4
Rated voltage 100 VDC.
Technical specifications
| Rated voltage (DC) | 100 V | |
| Capacity | 4700 µF | |
| diameter | 30 mm | |
| Grid | 10 mm | |
| Length | 50 mm | |
| Version | polar | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Connection | snap-in | |
| Tolerance | ±20 % | |
| max. operating temperature | 85 °C | |
| Ripple current | 5.86 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
| Original Packaging | Carton with 80 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
