PFE0381BX-000U-S99 | SUNON

Name: DC axial fan, 12 V, 140 x 140 x 38 mm, 506.13 m³/h, 74 dB, ball bearing, SUNON PFE0381BX-000U-S99
Brand: SUNON
SKU: 90B670
Availability: InStock

DC axial fan, 12 V, 140 x 140 x 38 mm, 506.13 m³/h, 74 dB, ball bearing, SUNON PFE0381BX-000U-S99

Order No.: 90B670

MPN:

PFE0381BX-000U-S99

DC-Lüfter 12V 140x140x38 (Kugellager) PWM

Series: High Airflow

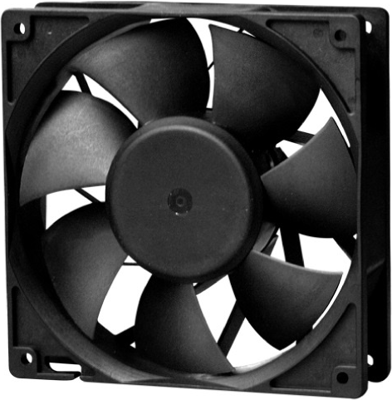

Image may differ

Key Specification:

Version DC axial fan

Rated voltage 12 V

Width 140 mm

Height 140 mm

Depth 38 mm

Show variants: 2

Download Datasheet Technical specifications

Unit Price (€ / pc.)

47.3977 € *

Standard delivery time from the manufacturer is: 1 Week

Total Price:

47.40 € *

Price list

Quantity

Price per unit*

1 pcs.

47.3977 €

5 pcs.

45.3033 €

10 pcs.

43.3874 €

25 pcs.

41.6381 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

DC-Fan, PFE0381BX-000U-S99, SUNON

DC-Fan, 12V 140 x 140 x 38, Ball bearing, PWM

Technical specifications

Filter	Property	Value
	Version	DC axial fan
	Rated voltage	12 V
	Width	140 mm
	Height	140 mm
	Depth	38 mm
	Volume flow	506.13 m³/h
	Sound pressure level	74 db
	speed	6800 1/min
	Type of bearing	ball bearing
	Power consumption	45.54 W
