BTA08-600BW-T | STMicroelectronics

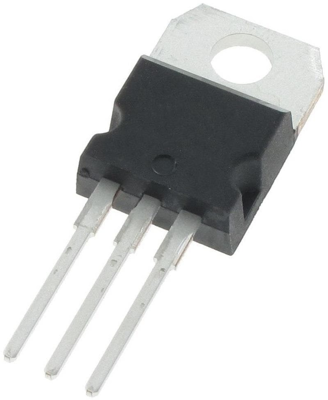

Triac, TO-220AB, STMicroelectronics BTA08-600BW-T
Unit Price (€ / pc.)
1.2376 € *
Available: 206 pcs.
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2376 €
10 pcs.
0.8925 €
100 pcs.
0.7616 €
500 pcs.
0.6545 €
1000 pcs.
0.6069 €
*incl. VAT plus shipping costs
Subject to prior sale
Triac, BTA08-600BW-T, STM
The BTA08-600BW-T is suitable for general purpose AC switching. It can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers and motor speed controllers.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| Voltage slew rates dV/dt | 1000 V/s | |
| Assembly | THT | |
| On-State Voltage | 1.55 V | |
| max. holding current | 50 mA | |
| max. operating temperature | 125 °C | |
| Gate trigger current | 50 mA | |
| Number of pins | 3 | |
| Rated current | 8 A | |
| Gate trigger voltage | 1.3 V | |
| Version | triac | |
| Enclosure | TO-220AB |
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Country of origin | DE |
| Customs tariff number | 85413000 |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
