STPS5H100B | STMicroelectronics

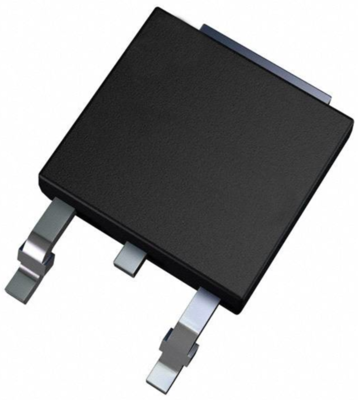

Schottky rectifier diode, 100 V (RRM), 5 A, DPAK, STPS5H100B
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.7378 € *
Standard delivery time from the manufacturer is: 15 Weeks
Schottky diode, STPS5H100B, STMicroelectronics
This high voltage Schottky barrier rectifier is packaged in DPAK and designed for high frequency compact switched mode power supply such as adapters and on board DC-DC converters.
Features
- Negligible switching losses
- High junction temperature capability
- Low leakage current
- Good trade-off between leakage current and forward voltage drop
- Avalanche specification
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | schottky rectifier diode | |
| Enclosure | DPAK | |
| Voltage V RRM (peak reverse voltage) | 100 V | |
| Forward Current | 5 A | |
| Number of diodes | 1 | |
| Junction temperature (max.) | 175 °C | |
| Assembly | SMD | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Country of origin | CN |
| Original Packaging | Bar with 75 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
