STPS40H100CW | STMicroelectronics

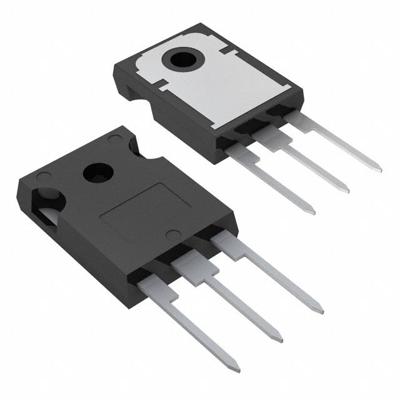

Schottky rectifier diode, 100 V (RRM), 20 A, TO-247, STPS40H100CW
Unit Price (€ / pc.)
2.5942 € *
Standard delivery time from the manufacturer is: 45 Weeks
Schottky diode, STPS40H100CW, STMicroelectronics
This dual diode common cathode Schottky rectifier is suited for Switch Mode Power Supply (SMPS) and high frequency DC to DC converters. Packaged in TO-247, the STPS40H100CW is optimized for use in high frequency inverters.
Features
- Negligible switching losses
- Low leakage current
- Good trade-off between leakage current and forward voltage drop
- Low thermal resistance
- Avalanche specification
Applications
- Switching diode
- Switch mode power supply
- Led lighting
- Desktop power supply
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Junction temperature (max.) | 175 °C | |
| Forward Current | 20 A | |
| max. operating temperature | 175 °C | |
| Voltage V RRM (peak reverse voltage) | 100 V | |
| Assembly | THT | |
| min. operating temperature | -65 °C | |
| Enclosure | TO-247 | |
| Version | schottky rectifier diode |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MA |
| Original Packaging | Bar with 1 piece |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
