BD239C | STMicroelectronics

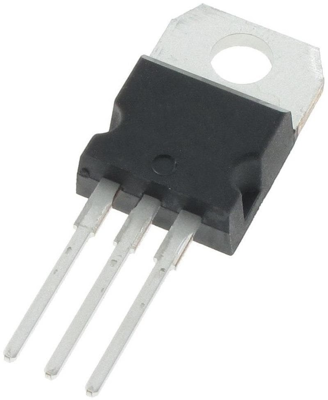

Bipolar junction transistor, NPN, 2 A, 115 V, THT, TO-220, BD239C
Unit Price (€ / pc.)
0.6307 € *
Available: 511 pcs.
Total Price:
0.63 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6307 €
25 pcs.
0.5117 €
100 pcs.
0.4284 €
250 pcs.
0.3689 €
1000 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale
NPN power transistor, BD239C, STMicroelectronics
This transistor shows exceptional high gain performance coupled with very low saturation voltage. It is suitable for general purpose switching and amplifier applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | TO-220 | |
| Version | NPN | |
| Saturation voltage | 700 mV | |
| Collector current | 2 A | |
| max.voltage between collector and emitter Vceo | 115 V | |
| max.voltage between collector and base Vcbo | 100 V | |
| Power dissipation | 30 W | |
| Transit frequency fTmin | 3 MHz | |
| Min DC gain | 15 mA | |
| Rated current | 2 A | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85412900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
