02540.1-01 | STEGO
LED lamp with screw mount, 6500 K, 41 mm, 400 lm
Unit Price (€ / pc.)
107.2904 € *
Available: 6 pcs.
Leadtime: 9 Weeks **
Total Price:
107.29 € *
Price list
Quantity
Price per unit*
1 pcs.
107.2904 €
3 pcs.
104.0774 €
10 pcs.
100.5074 €
25 pcs.
97.8061 €
100 pcs.
93.5221 €
*incl. VAT plus shipping costs
**Subject to prior sale

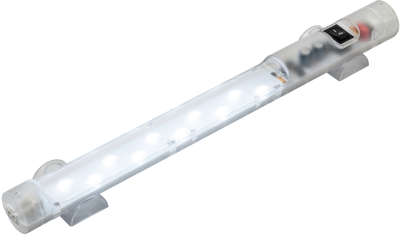

LED lamp with screw mount, type STEGO LED 02540
For control cabinets, with internal power supply, continuous wiring, rapid connection with plug-in contacts. On and off switch.
Power consumption: max. 5.0 W
Radiation angle: 120°
Color temperature: 6500 K
Luminous intensity: 400 lm (corresponds to 95 W filament bulb)
Useful life at +20 °C: 60000 h
Safety class: II
Degree of protection: IP 20
Certifications: VDE, cULus, EAC
Ambient temperatures: - 30 to + 60 °C
Dimensions: 351 x 41 x 52 mm
Technical attributes (type, rated voltage, working range): 02540.1-01, 24 to 48 VDC, 20 to 60 VDC
Technical specifications
| Version | LED light | |
| diameter | 41 mm | |
| Colour temperature | 6500 K | |
| Height | 52 mm | |
| Length | 351 mm | |
| Power | 5 W | |
| Luminous flux | 400 lm | |
| Degree of protection (IP) | IP20 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 94054131 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
