02540.0-01 | STEGO
LED light, 5 W, 400 lm, 6500 K, 02540.0-01
Unit Price (€ / pc.)
69.7697 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
69.77 € *
Price list
Quantity
Price per unit*
1 pcs.
69.7697 €
5 pcs.
66.2711 €
10 pcs.
62.7725 €
*incl. VAT plus shipping costs
Subject to prior sale

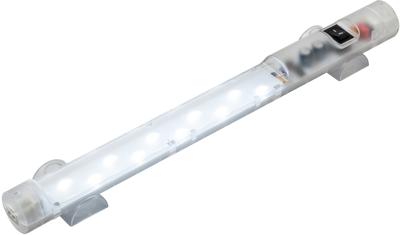

LED lamp with screw mount, type STEGO LED 02540
For control cabinets, with internal power supply, continuous wiring, rapid connection with plug-in contacts. On and off switch.
Power consumption: max. 5.0 W
Radiation angle: 120°
Color temperature: 6500 K
Luminous intensity: 400 lm (corresponds to 95 W filament bulb)
Useful life at +20 °C: 60000 h
Safety class: II
Degree of protection: IP 20
Certifications: VDE, cULus, EAC
Ambient temperatures: - 30 to + 60 °C
Dimensions: 351 x 41 x 52 mm
Technical attributes (type, rated voltage, working range): 02540.0-01, 100 to 240 VAC, 90 to 265 VAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour temperature | 6500 K | |
| Power | 5 W | |
| Height | 52 mm | |
| Luminous flux | 400 lm | |
| Length | 351 mm | |
| Degree of protection (IP) | IP20 | |
| Version | LED light | |
| diameter | 41 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
