MK16-D-2 | Standex Electronics
Proximity switch, SMD, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, MK16-D-2
Unit Price (€ / pc.)
1.6184 € *
Available: 0 pcs.
Leadtime: On Request **

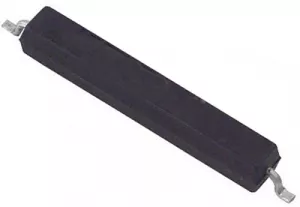

SMD proximity switches with reed contacts, type Standex-Meder MK16.
Gullwing connection; Breaking capacity: max. 10 W. Switching voltage: max. 200 V. Switching current: max. 0.5 A. On-state current: max. 0.5 A. Contact resistance (static): max. 150 mohm. Operating temperatures: –40 to +130 °C.
Technical attributes (type, min./max. pickup): MK16-D-2, 40/67 W
Technical specifications
| Connection | SMD | |
| Version | reed sensor | |

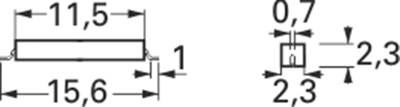

| Length | 12.3 mm | |
| Assembly | SMD | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 10 W | |
| Switching Voltage (DC) | 200 V | |
| switching current | 0.5 A | |
| Contact resistance | 150 mΩ |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
| Original Packaging | Reel with 2,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
