MK16-B-2 | Standex Electronics
Reed switche, SMD, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, MK16-B-2
Unit Price (€ / pc.)
0.8211 € *
Standard delivery time from the manufacturer is: 7 Weeks

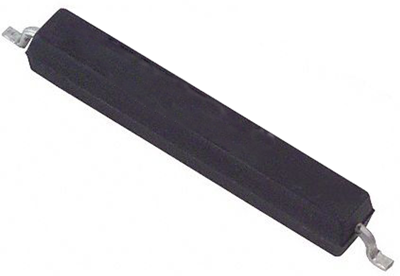

Reed sensor, MK16-B-2, Standex Electronics
The MK16-B-2 is a miniature surface mount reed sensor used in On/Off control switch, proximity, motion, position detection. Supplied in tape and reel according to IEC 286/part 3. Axial or gull-wing lead designs available. UL Approval.
Features
- Supplied in tape and reel
- Excellent for low power operations
Applications
- Switching element in microphones
- Appliance
- Telecommunication
- Security
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 200 V | |
| Connection | SMD | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 0.5 A | |

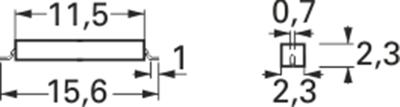

| Length | 12.3 mm | |
| Product type | reed sensor | |
| Assembly | SMD | |
| Contact resistance | 150 mΩ | |
| Breaking capacity | 10 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Reel with 2,500 pieces |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
