24.0238-21 | Stäubli Electrical Connectors

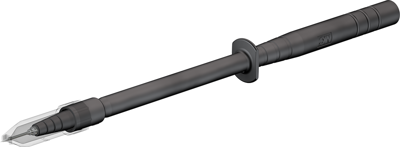

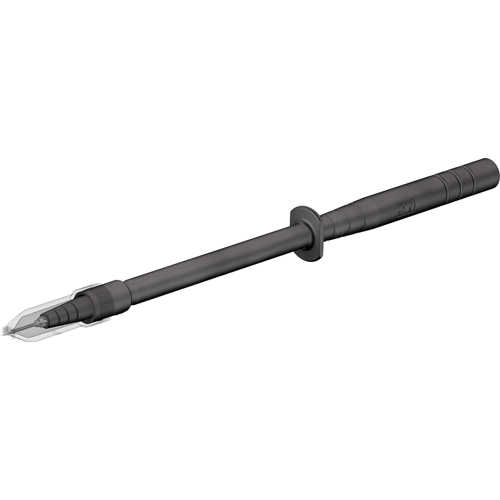

Test probe, socket 4 mm, rigid, 1000 V, CAT II, black, 24.0238-21
Unit Price (€ / pc.)
19.6112 € *
Available: 59 pcs.
Available in 7 Days: 250 pcs. - if ordered today
Total Price:
19.61 € *
Price list
Quantity
Price per unit*
1 pcs.
19.6112 €
10 pcs.
17.2193 €
50 pcs.
16.0769 €
100 pcs.
15.3748 €
500 pcs.
14.5656 €
*incl. VAT plus shipping costs
Subject to prior sale
Test probe, 24.0238-21, Stäubli Electrical Connectors

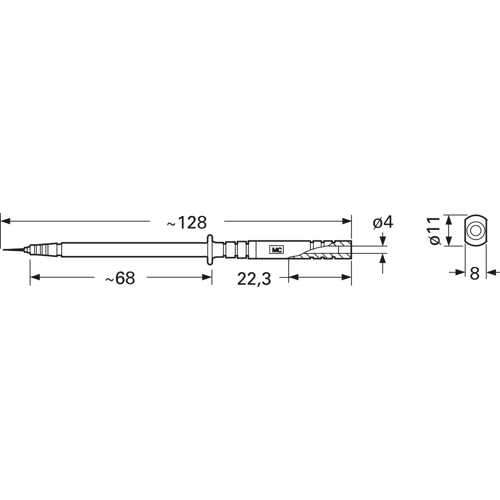

Spring-loaded stainless steel needle which reacts resiliently under light pressure. Specially suited for sensitive printed circuits. Test probe with handle guard chamfered on both sides. Ø 4 mm rigid socket in handle accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Supplied with protective cap.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | test probe | |
| Connection | socket 4 mm, rigid | |
| Rated Voltage | 1000 V | |
| Rated category | CAT II | |
| Colour | black | |
| Material Insulation | PA | |
| Contact material | stainless steel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
