24.0235-22 | Stäubli Electrical Connectors
Test probe, socket 4 mm, rigid, 1000 V, CAT III, red, 24.0235-22
Unit Price (€ / pc.)
6.5688 € *
Available: 63 pcs.
Available in 7 Days: 960 pcs. - if ordered today
Total Price:
6.57 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5688 €
10 pcs.
5.7834 €
100 pcs.
5.0694 €
500 pcs.
4.8790 €
1000 pcs.
4.5577 €
*incl. VAT plus shipping costs
Subject to prior sale
Test probe, 24.0235-22, Stäubli Electrical Connectors

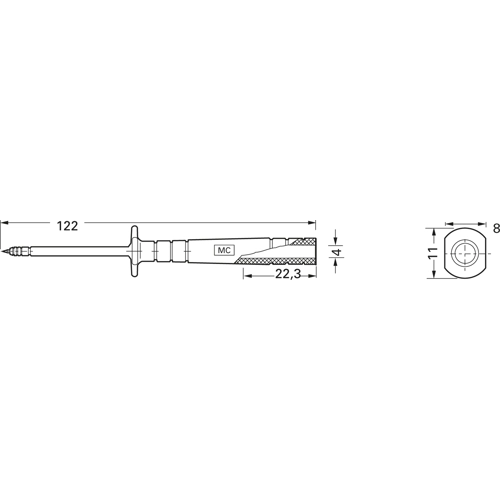

Test probe with tapered, stainless steel rigid needle and with handle guard chamfered on both sides. Ø 4 mm rigid socket in handle accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Supplied with protective cap.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | test probe | |
| Connection | socket 4 mm, rigid | |
| Rated Voltage | 1000 V | |
| Rated category | CAT III | |
| Colour | red | |
| Material Insulation | PA | |
| Contact material | stainless steel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
