67.9537-21 | Stäubli Electrical Connectors

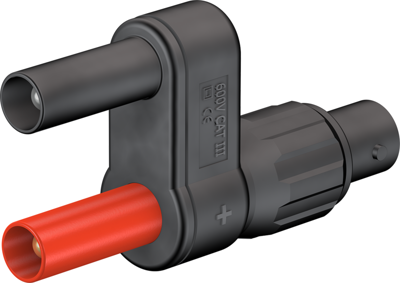

Adapter, BNC socket to 2 x 4 mm plug, black, CAT III, 67.9537-21
Unit Price (€ / pc.)
17.1717 € *
Available: 44 pcs.
Available in 10 days: 110 pcs. - if ordered today
Total Price:
17.17 € *
Price list
Quantity
Price per unit*
1 pcs.
17.1717 €
10 pcs.
15.1130 €
50 pcs.
14.0777 €
100 pcs.
13.4470 €
500 pcs.
12.7925 €
*incl. VAT plus shipping costs
Subject to prior sale
Adapter for laboratory connector, 67.9537-21, Stäubli Electrical Connectors
Two-pole touch-protected adapters with Ø 4 mm connectors linked to the BNC system. Versions with BNC male or female connector and rigid Ø 4 mm sockets or Ø 4 mm MULTILAM plugs with rigid insulating sleeve. The contact pins and sockets of the inner conductor of the BNC plug connector are in gold-plated brass.
Technical Data
- Version: Reducer adapter
- Colour: black
- Rated voltage: 600 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | adapter | |
| Site (1) | BNC socket | |
| Site (2) | 2 x 4 mm plug | |
| Colour | black | |
| contact surface | nickel-plated/gold-plated | |
| Rated category | CAT III | |
| Rated Voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
