66.9694-21 | Stäubli Electrical Connectors
Angle plug adapter, 4 mm plug to 4 mm socket, black, CAT II, 66.9694-21
Unit Price (€ / pc.)
5.9857 € *
Available: 28 pcs.
Total Price:
5.99 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9857 €
10 pcs.
5.2598 €
50 pcs.
4.5934 €
100 pcs.
4.4149 €
500 pcs.
4.1412 €
*incl. VAT plus shipping costs
Subject to prior sale

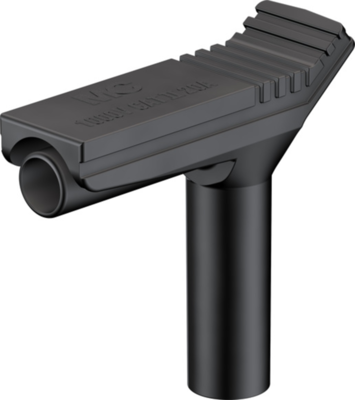

Adapter for laboratory connector, 66.9694-21, Stäubli Electrical Connectors
Insulated right-angle plug adapter, made of brass. Ø 4 mm plug with spring-loaded Multilam and with rigid insulating sleeve and Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. This right-angle plug adapter is suitable in particular for instruments with front panel sockets where the lead can be fitted with the maximum of convenience.
Technical Data
- Version: Right-angle plug adapter
- Colour: black
- Rated voltage: 1000 V
- Rated current: 20 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | angle plug adapter | |
| Site (1) | 4 mm plug | |
| Site (2) | 4 mm socket | |
| Colour | black | |
| contact surface | nickel-plated | |
| Rated category | CAT II | |
| Rated Voltage | 1000 V | |
| Rated current | 20 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
