24.0161-23 | Stäubli Electrical Connectors
Screw-clamping adapter, CAT II, blue
Unit Price (€ / pc.)
3.9270 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9270 €
25 pcs.
3.3439 €
100 pcs.
3.1059 €
500 pcs.
2.9155 €
1000 pcs.
2.6775 €
*incl. VAT plus shipping costs
**Subject to prior sale

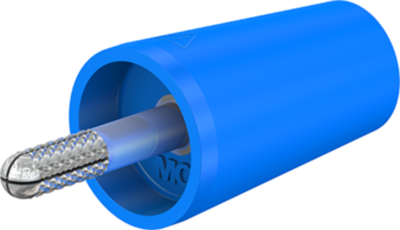

Screw-clamping Adapter, 24.0161-23, Stäubli Electrical ConnectorsACT
Adapter, made of brass can be screw-mounted into Ø 4 mm sockets. The expandable Ø 4 mm plug of this adapter can be locked into the socket by tightening the grub screw.
Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Version | screw-clamping adapter | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Colour | blue | |
| contact surface | nickel-plated | |
| Rated category | CAT II | |
| Site (1) | 4 mm plug, spreadable | |
| Site (2) | 4 mm socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Bag with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
