23.0280-21 | Stäubli Electrical Connectors
4 mm screw-in adapter
Unit Price (€ / pc.)
1.5708 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.57 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5708 €
10 pcs.
1.4518 €
50 pcs.
1.3447 €
100 pcs.
1.2614 €
500 pcs.
1.1781 €
*incl. VAT plus shipping costs
**Subject to prior sale

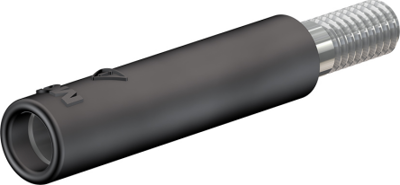

Screw-in adapter, 23.0280-21, Stäubli Electrical Connectors
Insulated, with external thread for screw connection to threaded holes. Machined brass. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Version | screw-in adapter | |
| Rated Voltage | 1000 V | |
| Rated current | 32 A | |
| Colour | black | |
| Thread size | M4 | |
| contact surface | nickel-plated | |
| Rated category | CAT II | |
| Site (1) | 4 mm socket | |
| Site (2) | 4 mm plug |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
