20.0159-21 | Stäubli Electrical Connectors
2 mm adapter, 2 mm socket to 2 mm plug, black, MLA2
Unit Price (€ / pc.)
2.8203 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2.82 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8203 €
25 pcs.
2.5942 €
50 pcs.
2.4395 €
100 pcs.
2.2967 €
500 pcs.
2.1420 €
*incl. VAT plus shipping costs
**Subject to prior sale

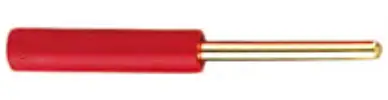

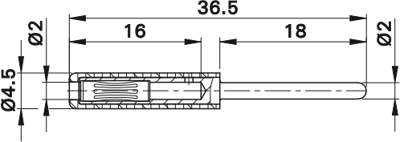

Touch-proof adapter, 20.0159-21, Stäubli Electrical Connectors
This adapter is made of gold-plated brass that can be screw-mounted into rigid Ø 2 mm sockets. By tightening an internal screw, the Ø 2 mm plug of this adapter expands by tightening an internal screw so that it sits firmly in the socket and provides full contact protection when fitted. The Ø 2 mm socket with spring-loaded contact lamella in the insulating body is suitable for rigid Ø 2 mm plugs with rigid insulating sleeve.
Technical specifications
| Version | adapter | |
| Colour | black | |
| contact surface | gold-plated | |
| Site (1) | 2 mm socket | |
| Site (2) | 2 mm plug |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
