63.9848-21 | Stäubli Electrical Connectors
Jumper, pitch 12 mm, 30 VAC/60 VDC, 60 V, 10 A, gold-plated, black, 63.9848-21
Unit Price (€ / pc.)
6.1880 € *
Available: 416 pcs.
Available in 10 days: 400 pcs. - if ordered today
Total Price:
6.19 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1880 €
25 pcs.
5.4621 €
100 pcs.
4.7838 €
500 pcs.
4.5934 €
1000 pcs.
4.3197 €
*incl. VAT plus shipping costs
Subject to prior sale

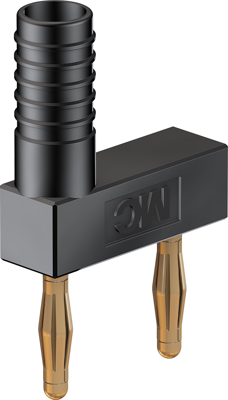

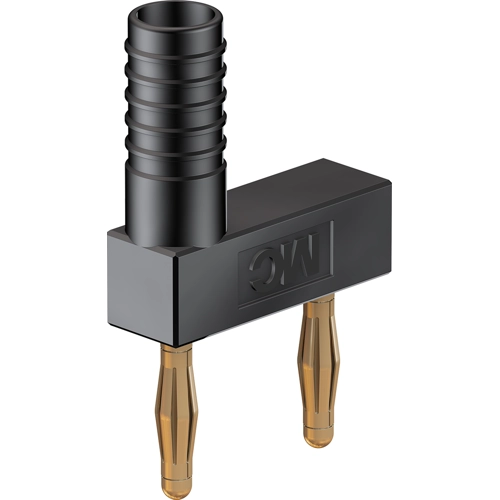

Short-circuit plug, 63.9848-21, Stäubli Electrical Connectors
Insulated Ø 2 mm connecting plug, made of brass. Equipped with spring-loaded Multilam to ensure vibration-proof contacts - ideal, for instance, in the automotive field for test drives and servicing. Ø 2 mm rigid socket in insulator accepting spring-loaded Ø 2 mm plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 30 VAC/60 VDC | |
| Rated voltage | 60 V | |
| Rated current | 10 A | |
| Grid | 12 mm | |
| contact surface | gold-plated | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
