24.0042-29 | Stäubli Electrical Connectors
Jumper, pitch 10 mm, 30 VAC/60 VDC, 60 V, 10 A, gold-plated, white, 24.0042-29
Unit Price (€ / pc.)
4.1531 € *
Available: 17 pcs.
Next delivery: 60 pcs. on 2026-06-11
Total Price:
4.15 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1531 €
20 pcs.
3.6414 €
100 pcs.
3.1892 €
500 pcs.
3.0821 €
1000 pcs.
2.8917 €
*incl. VAT plus shipping costs
Subject to prior sale

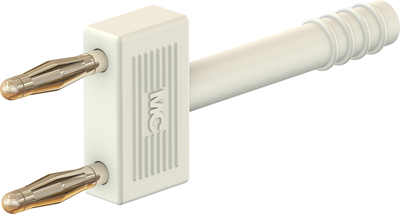

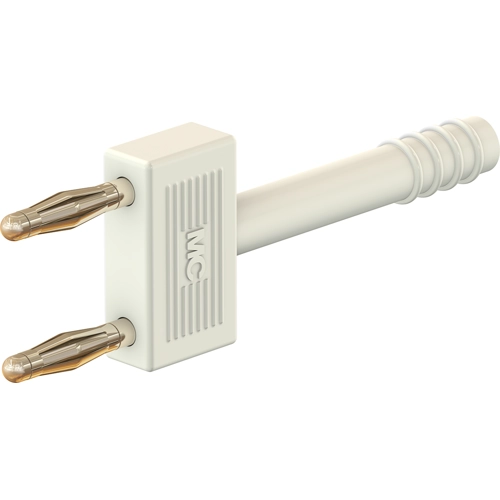

Short-circuit plug, 24.0042-29, Stäubli Electrical Connectors
Insulated Ø 2 mm connecting plugs. Made of brass, one piece and with spring-loaded Multilam. With insulating grip.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 30 VAC/60 VDC | |
| Rated voltage | 60 V | |
| Rated current | 10 A | |
| Grid | 10 mm | |
| contact surface | gold-plated | |
| Colour | white |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
