66.9327-28 | Stäubli Electrical Connectors
4 mm plug, screw connection, 1.0 mm², CAT II, gray, 66.9327-28
Unit Price (€ / pc.)
6.1761 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.18 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1761 €
25 pcs.
5.4145 €
100 pcs.
4.7481 €
500 pcs.
4.5815 €
1000 pcs.
4.2721 €
*incl. VAT plus shipping costs
Subject to prior sale

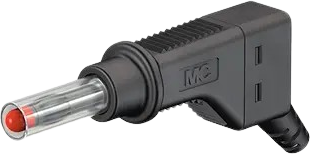

Laboratory connector, 66.9327-28, Stäubli Electrical Connectors
The 66.9327-28 stackable, Ø 4 mm, with spring-loaded MULTILAM, for selfassembly of test leads. With retractable sleeve to prevent accidental touching. As a result of the protective collar, the clearances and creepage distances allow test leads equipped with this plug also to be safely connected to older test instruments not yet fitted with safety sockets up to 600 V.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| contact surface | nickel-plated | |
| max. Cable diameter | 3.9 mm | |
| diameter | 4 mm | |
| Length | 59 mm | |
| Cable cross-section | 1.0 mm² | |
| Stackable | Yes | |
| Touch safe | No | |
| Version | plug | |
| Connection | screw connection | |
| Rated Voltage | 600 V | |
| Rated current | 19 A | |
| Rated category | CAT II |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
