66.9327-22 | Stäubli Electrical Connectors

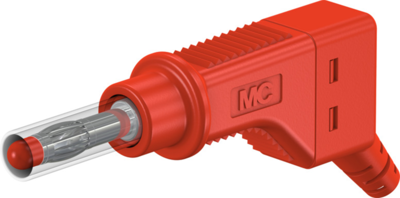

4 mm plug, screw connection, 1.0 mm², CAT II, red, 66.9327-22
Unit Price (€ / pc.)
7.1519 € *
Available: 73 pcs.
Available in 10 days: 275 pcs. - if ordered today
Total Price:
7.15 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1519 €
25 pcs.
6.2832 €
100 pcs.
5.5097 €
500 pcs.
5.3074 €
1000 pcs.
4.9623 €
*incl. VAT plus shipping costs
Subject to prior sale
4 mm Plug, 66.9327-22, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With retractable sleeve to prevent accidental touching. Screw connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| diameter | 4 mm | |
| Colour | red | |
| Connection | screw connection | |
| contact surface | nickel-plated | |
| Cable cross-section | 1.0 mm² | |
| max. Cable diameter | 3.9 mm | |
| Rated Voltage | 600 V | |
| Rated current | 19 A | |
| Rated category | CAT II | |
| Touch safe | Yes | |
| Stackable | Yes | |
| Length | 59 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
