66.9196-22 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², CAT III, red, 66.9196-22
No longer available from manufacturer
Unit Price (€ / pc.)
3.1297 € *
Available: 10 pcs.
Leadtime: On Request **
Total Price:
3.13 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1297 €
10 pcs.
2.7489 €
100 pcs.
2.4157 €
500 pcs.
2.3086 €
1000 pcs.
2.1658 €
*incl. VAT plus shipping costs
**Subject to prior sale

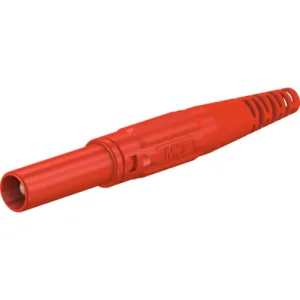

4 mm Plug, 66.9196-22, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Screw connection.
Technical specifications
| Colour | red | |
| contact surface | nickel-plated | |
| max. Cable diameter | 3.9 mm | |
| diameter | 4 mm | |
| Length | 75.5 mm | |
| Cable cross-section | 2.5 mm² | |
| Stackable | No | |
| Touch safe | Yes | |
| Version | plug | |
| Connection | screw connection | |
| Rated Voltage | 600 V | |
| Rated current | 32 A | |
| Rated category | CAT III |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
