66.7049-22 | Stäubli Electrical Connectors

4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, red, 66.7049-22

Order No.: 86F9480
EAN: 4099891762834
MPN:
66.7049-22
SEB4-GK/N ROT

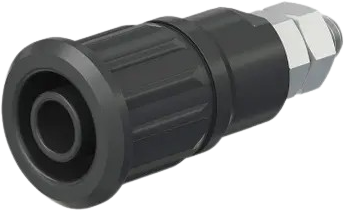

66.7049-22 Stäubli Electrical Connectors Laboratory Connectors Image 1

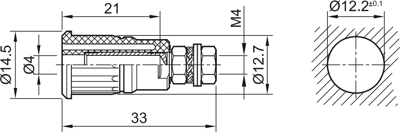

66.7049-22 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
1.3804 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1.38 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3804 €
20 pcs.
1.2614 €
100 pcs.
1.1900 €
500 pcs.
1.1067 €
1000 pcs.
1.0353 €
*incl. VAT plus shipping costs
Subject to prior sale

Press-in socket, 66.7049-22, Stäubli Electrical Connectors

The 66.7049-22 is a press-in socke accepting spring-loaded Ø 4 mm plug with rigid insulating sleeve. The socket is pressed into pre-drilled panels of plastic, metal, etc.

Technical specifications
Filter Property Value
Rated current 24 A
Rated category CAT III, CAT IV
Stackable No
Installation diameter 12.2 mm
Touch safe No
Version panel socket
Connection threaded bolt
Length 33 mm
diameter 4 mm
contact surface nickel-plated
Colour red
Rated Voltage 1000 V/600 V
Logistics
Property Value
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
