66.7049-21 | Stäubli Electrical Connectors

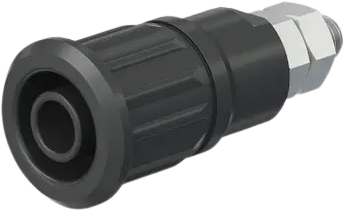

4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, black, 66.7049-21

Order No.: 86F9479
EAN: 4099891762827
MPN:
66.7049-21
SEB4-GK/N SCHWARZ
Series: SEB4-GK/N
Stäubli Electrical Connectors
default L
front L
Image may differ
Print
Key Specification:
Version panel socket
diameter 4 mm
Colour black
Connection threaded bolt
contact surface nickel-plated
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
1.2852 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Add to Cart
Total Price:
1.29 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2852 €
20 pcs.
1.1781 €
100 pcs.
1.1067 €
500 pcs.
1.0353 €
1000 pcs.
0.9639 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Press-in socket, 66.7049-21, Stäubli Electrical Connectors

The 66.7049-21 is a press-in socke accepting spring-loaded Ø 4 mm plug with rigid insulating sleeve. The socket is pressed into pre-drilled panels of plastic, metal, etc.
Technical specifications
Connection threaded bolt
Version panel socket
Rated Voltage 1000 V/600 V
Rated current 24 A
Touch safe No
diameter 4 mm

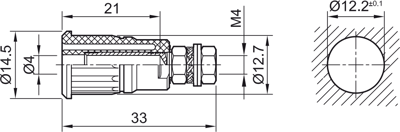

Installation diameter 12.2 mm
Colour black
contact surface nickel-plated
Length 33 mm
Rated category CAT III, CAT IV
Stackable No
Show similar products 0
Logistics
Country of origin DE
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Colour
diameter
Unit:
contact surface
Version
Rated Voltage
Rated current
Unit:
Length
Unit:
Rated category
Connection
Installation diameter
Unit:
1 item in 9 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Colour
diameter
contact surface
Version
Rated Voltage
Rated current
Length
Rated category
Connection
Installation diameter
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, blue, 66.7049-23
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, blue, 66.7049-23
Order No.:
 86F9481
Manufacturer:
 Stäubli Electrical Connectors
Manufacturer SKU:
 66.7049-23
Available: 0 pcs. Leadtime: 4 Weeks **
Total Price: 1.29 € *
1 pcs.
1.2852 €
20 pcs.
1.1781 €
100 pcs.
1.1067 €
500 pcs.
1.0353 €
1000 pcs.
0.9639 €
blue
4 mm
nickel-plated
panel socket
1000 V/600 V
24 A
33 mm
CAT III, CAT IV
threaded bolt
12.2 mm
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, black, 66.7049-21
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, black, 66.7049-21
Order No.:
 86F9479
Manufacturer:
 Stäubli Electrical Connectors
Manufacturer SKU:
 66.7049-21
Available: 0 pcs. Leadtime: 4 Weeks **
Total Price: 1.29 € *
1 pcs.
1.2852 €
20 pcs.
1.1781 €
100 pcs.
1.1067 €
500 pcs.
1.0353 €
1000 pcs.
0.9639 €
black
4 mm
nickel-plated
panel socket
1000 V/600 V
24 A
33 mm
CAT III, CAT IV
threaded bolt
12.2 mm
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, gray, 66.7049-28
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, gray, 66.7049-28
Order No.:
 86F9486
Manufacturer:
 Stäubli Electrical Connectors
Manufacturer SKU:
 66.7049-28
Available: 0 pcs. Leadtime: 4 Weeks **
Total Price: 1.29 € *
1 pcs.
1.2852 €
20 pcs.
1.1781 €
100 pcs.
1.1067 €
500 pcs.
1.0353 €
1000 pcs.
0.9639 €
gray
4 mm
nickel-plated
panel socket
1000 V/600 V
24 A
33 mm
CAT III, CAT IV
threaded bolt
12.2 mm
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, green, 66.7049-25
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, green, 66.7049-25
Order No.:
 86F9483
Manufacturer:
 Stäubli Electrical Connectors
Manufacturer SKU:
 66.7049-25
Available: 0 pcs. Leadtime: 4 Weeks **
Total Price: 1.29 € *
1 pcs.
1.2852 €
20 pcs.
1.1781 €
100 pcs.
1.1067 €
500 pcs.
1.0353 €
1000 pcs.
0.9639 €
green
4 mm
nickel-plated
panel socket
1000 V/600 V
24 A
33 mm
CAT III, CAT IV
threaded bolt
12.2 mm
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, white, 66.7049-29
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, white, 66.7049-29
Order No.:
 86F9487
Manufacturer:
 Stäubli Electrical Connectors
Manufacturer SKU:
 66.7049-29
Available: 0 pcs. Leadtime: 4 Weeks **
Total Price: 1.29 € *
1 pcs.
1.2852 €
20 pcs.
1.1781 €
100 pcs.
1.1067 €
500 pcs.
1.0353 €
1000 pcs.
0.9639 €
white
4 mm
nickel-plated
panel socket
1000 V/600 V
24 A
33 mm
CAT III, CAT IV
threaded bolt
12.2 mm
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, red, 66.7049-22
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, red, 66.7049-22
Order No.:
 86F9480
Manufacturer:
 Stäubli Electrical Connectors
Manufacturer SKU:
 66.7049-22
Available: 0 pcs. Leadtime: 4 Weeks **
Total Price: 1.29 € *
1 pcs.
1.2852 €
20 pcs.
1.1781 €
100 pcs.
1.1067 €
500 pcs.
1.0353 €
1000 pcs.
0.9639 €
red
4 mm
nickel-plated
panel socket
1000 V/600 V
24 A
33 mm
CAT III, CAT IV
threaded bolt
12.2 mm
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, brown, 66.7049-27
4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, brown, 66.7049-27
Order No.:
 86F9485
Manufacturer:
 Stäubli Electrical Connectors
Manufacturer SKU:
 66.7049-27
Available: 0 pcs. Leadtime: 4 Weeks **
Total Price: 1.29 € *
1 pcs.
1.2852 €
20 pcs.
1.1781 €
100 pcs.
1.1067 €
500 pcs.
1.0353 €
1000 pcs.
0.9639 €
brown
4 mm
nickel-plated
panel socket
1000 V/600 V
24 A
33 mm
CAT III, CAT IV
threaded bolt
12.2 mm
