66.2043-26 | Stäubli Electrical Connectors

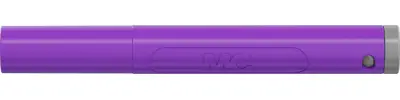

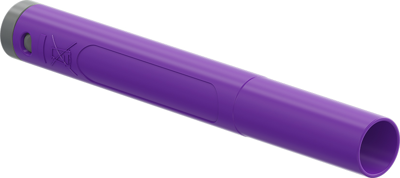

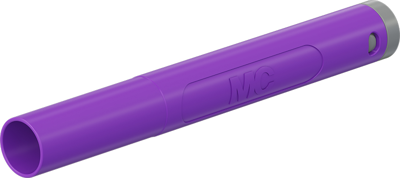

4 mm plug, crimp connection, 1.0 mm², CAT II/CAT III, purple, 66.2043-26
Order No.: 22F7622
EAN: 4099891972769
MPN:
66.2043-26
SACR10-4A-39-TW VIOLETT
Series: Test & Measurement
Unit Price (€ / pc.)
3.2130 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.21 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2130 €
10 pcs.
2.9750 €
50 pcs.
2.7370 €
100 pcs.
2.5704 €
500 pcs.
2.4157 €
*incl. VAT plus shipping costs
Subject to prior sale
Safety connector, 66.2043-26, Stäubli Electrical Connectors
In-line, extra slim, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Crimp connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| Length | 65 mm | |
| contact surface | gold-plated | |
| Colour | purple | |
| Stackable | No | |
| Rated category | CAT II/CAT III | |
| max. Cable diameter | 3.9 mm | |
| Rated current | 19 A | |
| Connection | crimp connection | |
| Version | plug | |
| Rated Voltage | 1000 V/600 V | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
