65.3300-22 | Stäubli Electrical Connectors

1.5 mm panel socket, round plug connection, mounting Ø 10.5 mm, red, 65.3300-22

Order No.: 22F7261
EAN: 4099891759360
MPN:
65.3300-22
MLB 1,5-R ROT
Series: Medicalline
65.3300-22 Stäubli Electrical Connectors Laboratory Connectors Image 1
65.3300-22 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
2.2610 € *
Available: 40 pcs.
Next delivery: 50 pcs. on 2025-06-04
Leadtime: 3 Weeks **
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.0706 €
50 pcs.
1.9516 €
100 pcs.
1.8207 €
500 pcs.
1.7017 €
*incl. VAT plus shipping costs
**Subject to prior sale

Touch-proof mounting socket, 65.3300-22, Stäubli Electrical Connectors

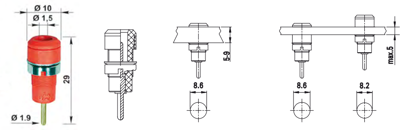

The 65.3300-22 is an insulated mounting socket according to DIN 42802, with rigid, gold-plated Ø 1.5 mm pin, suitable for holding spring-loaded Ø 1.5 mm sockets. Assembly by mounting or installation in holes in plates or housings made of plastic, metal etc.

Technical specifications
Stackable No
Colour red
Length 29 mm
Touch safe Yes
Connection round plug connection
Installation diameter 10.5 mm
diameter 1.5 mm
Version panel socket
contact surface gold-plated
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
