65.3300-21 | Stäubli Electrical Connectors
1.5 mm panel socket, round plug connection, mounting Ø 10.5 mm, black, 65.3300-21
Unit Price (€ / pc.)
2.2134 € *
Available: 50 pcs.
Leadtime: 2 Weeks **
Total Price:
2.21 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2134 €
10 pcs.
2.0349 €
50 pcs.
1.9159 €
100 pcs.
1.7850 €
500 pcs.
1.6660 €
*incl. VAT plus shipping costs
**Subject to prior sale
Touch-proof mounting socket, 65.3300-21, Stäubli Electrical Connectors

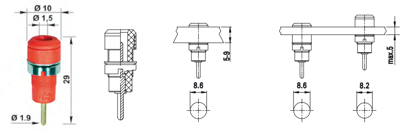

The 65.3300-21 is an insulated mounting socket according to DIN 42802, with rigid, gold-plated Ø 1.5 mm pin, suitable for holding spring-loaded Ø 1.5 mm sockets. Assembly by mounting or installation in holes in plates or housings made of plastic, metal etc.
Technical specifications
| Connection | round plug connection | |
| Version | panel socket | |
| Touch safe | Yes | |
| diameter | 1.5 mm | |
| Installation diameter | 10.5 mm | |
| Colour | black | |
| contact surface | gold-plated | |
| Length | 29 mm | |
| Stackable | No |
Download
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
