64.2010-29 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², CAT II, white, 64.2010-29
Unit Price (€ / pc.)
3.6295 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
3.63 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6295 €
10 pcs.
3.3320 €
50 pcs.
3.1416 €
100 pcs.
2.9274 €
500 pcs.
2.7370 €
*incl. VAT plus shipping costs
**Subject to prior sale

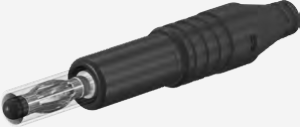

Plug, 64.2010-29, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. With retractable sleeve to prevent accidental touching.
Technical specifications
| Connection | solder connection | |
| Version | plug | |
| Rated Voltage | 60 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Colour | white | |
| contact surface | nickel-plated | |
| Length | 71 mm | |
| Cable cross-section | 2.5 mm² | |
| max. Cable diameter | 3.9 mm | |
| Rated category | CAT II | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
