64.2010-25 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², CAT II, green, 64.2010-25
Unit Price (€ / pc.)
3.8556 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
10 pcs.
3.5462 €
50 pcs.
3.3439 €
100 pcs.
3.1059 €
500 pcs.
2.9155 €
*incl. VAT plus shipping costs
Subject to prior sale

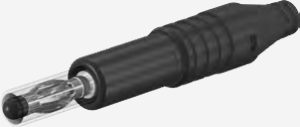

Plug, 64.2010-25, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. With retractable sleeve to prevent accidental touching.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| max. Cable diameter | 3.9 mm | |
| contact surface | nickel-plated | |
| Rated Voltage | 60 V | |
| Touch safe | Yes | |
| Connection | solder connection | |
| Length | 71 mm | |
| Rated category | CAT II | |
| Stackable | No | |
| Rated current | 32 A | |
| Colour | green | |
| Version | plug | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bag with 100 pieces |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
