22.1078 | Stäubli Electrical Connectors

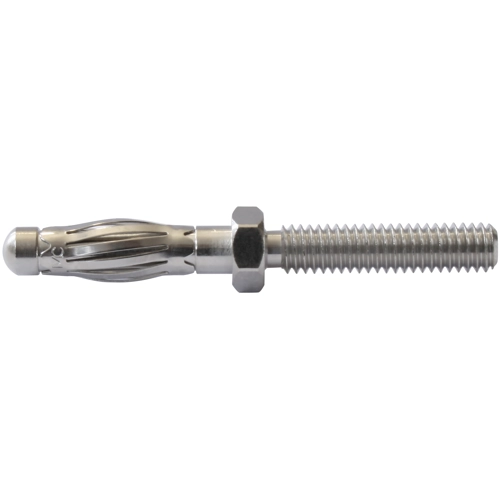

4 mm Panel plug, Screw connection, nickel-plated
Unit Price (€ / pc.)
1.8683 € *
Available: 3 pcs.
Total Price:
1.87 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8683 €
10 pcs.
1.5827 €
100 pcs.
1.4637 €
500 pcs.
1.3923 €
1000 pcs.
1.2733 €
*incl. VAT plus shipping costs
Subject to prior sale
4 mm Panel plug, 22.1078, Stäubli Electrical Connectors
Ø 4 mm Multilam plug, M4 screw connection, material: CuZn, nickel-plated, withdrawal force: appr. 10 N, rated current: 50 A (according to connecting method and cross-section), contact resistance: 0.4 mΩ, max. temperature: 150 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 4 mm | |
| Touch safe | No | |
| Length | 38.5 mm | |
| contact surface | nickel-plated | |
| Stackable | No | |
| Connection | screw connection | |
| Rated current | 50 A | |
| Version | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
