22.1045 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², CAT II, 22.1045
Order No.: 15F160
EAN: 4099889664614
MPN:
22.1045
LS425-SW/A
Unit Price (€ / pc.)
2.3086 € *
Available: 0 pcs.
Next delivery: 200 pcs. on 2024-05-07
Leadtime: 1 Week **
Total Price:
2.31 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3086 €
10 pcs.
1.9754 €
100 pcs.
1.8207 €
500 pcs.
1.7255 €
1000 pcs.
1.5708 €
*incl. VAT plus shipping costs
**Subject to prior sale
Safety laboratory plugs, 4.0 mm, type MC LS425-SW/A.
90° angled 4.0 mm plug with spring-loaded contact lamella, made of gold-plated brass and rigid insulating sleeve, solder connection up to max. 2.5 mm²; Rated voltage: 500 V, CAT II. Rated current: max. 32 A.
Type: LS425–SW/A, bright connector element
Technical specifications
| Connection | solder connection | |
| Version | plug | |
| Rated Voltage | 500 V | |
| Rated current | 32 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| contact surface | gold-plated | |

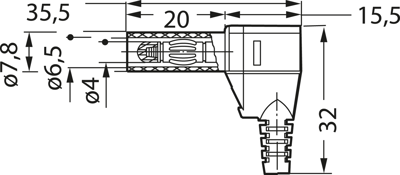

| Length | 35.5 mm | |
| Cable cross-section | 2.5 mm² | |
| Rated category | CAT II |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
